Magnum Offroad Kawasaki Teryx 4 Explorer Series Long Travel Suspension System

Kawasaki Teryx4: Explorer Series Long Travel Suspension System

  • Product Description

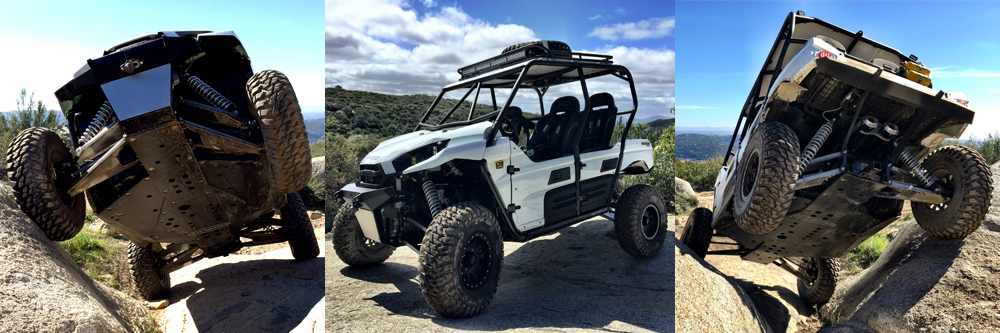

    Quite possibly the finest high performance suspension system available on the market for the Kawasaki Teryx / Teryx4. Designed for the most aggressive trails but equally at home in all terrain. Our new Magnum Offroad Kawasaki Teryx4 Explorer Series +6 Long Travel Suspension System delivers the suspension articulation needed to tackle the most intense rock gardens, while still providing a smooth and stable ride through the open desert and dunes. Unique ramped lower arm design aids while traversing rocks and uneven terrain, while the complete 4130 chromoly construction protects from even the hardest drops and hits. Months of carefull R&D were spent to insure that this system is the most ultimate available.


    Suspension System Features:

    100% 4130 Chromoly Boxed Construction w/ Internal Gusseting

    CAD Designed / Laser Cut / CNC Bent / Fixture Assembled / & TIG Welded

    Camber Adjustable Front Upper Arm w/ 3/4" Heim Joint & 4140 Chromoly Taper Pin

    6061 Aluminum Tie Rod Extensions

    Unique "Ramped" Lower Arm Design

    +2" Wheelbase (Rear Only)

    15" Front / 17" Rear Wheel Travel

    Fox 2.0 8.5" Front Race Shocks w/ Remote Reservoirs & Aluminum Front Tower Mount (Single Rate)

    Fox 2.0 10" Rear Race Shocks w/ Remote Reservoirs (Dual Rate)

    Eibach Coil Springs

    Summers Brothers 4340 Extended Axle Set

    Stainless Steel Brakelines

    Single Stage Powder Coat




    *Please Note:

    Our Kawasaki Teryx4 Long Travel Suspension Systems are currently in FULL production. Orders will be shipped out in the order they are recived. Single stage powder coat is included, so please specify desired color when ordering. If dual stage powder coat is desired (ie: candy, metallic, etc.) please email or contact us via telephone for pricing. Please also feel free to contact us for expected delivery times if desired.
